Thulin-K
|
Dirty Birdy 40
|
| Pilot: Rob in Pennsylvania |
Pilot: Bob in New York
|
- Wingspan: 36"
- Weight: 0.825bs (13.2oz or 374g)
- BadAss 2305-1050Kv
- BadAss Rebel V1 12A ESC
- BadAss 2S 850mah LiHv LiPo Battery
- APC 9x4.7SF Prop
- 6.35A, 47 watts, 26mph Pitch Speed, 12.5oz Thrust
- 57 watts/lb, 0.95:1 Thrust Ratio
- Plan Featured by Rob in the AMA Magazine
|
- Wingspan: 58"
- Weight: 5.375bs (86oz or 2438g)
- BadAss 3520-650Kv
- Tempest 80A ESC
- 5S 5000mah LiPo Battery
- APC 11x8.5 Prop
- 48.5A, 897 watts, 84mph Pitch Speed, 97oz Thrust
- 167 watts/lb, 1.13:1 Thrust Ratio
|
| |
|
 |
|
Hangar 9 Aspire
|
Daddy Rabbit
|
| Pilot: Mark in Canada |
Pilot: Jim in Alabama
|
- Wingspan: 75"
- Weight: 2.6bs (42oz or 1191g)
- BadAss 2315-880Kv
- Hacker 55A ESC
- 3S 2200mah LiPo Battery
- Gemfan 11x8 Folding Prop
- 18A, 203 watts, 53mph Pitch Speed, 37oz Thrust
- 78 watts/lb, .88:1 Thrust Ratio
|
- Wingspan: 64"
- Weight: 8.13bs (130oz or 3685g)
- BadAss 3530-570Kv
- BadAss Rebel V2 80A ESC
- 6S 5900mah LiHv LiPo Battery
- APC 13x8 Prop
- 63A, 1392 watts, 76mph Pitch Speed, 153oz Thrust
- 171 watts/lb, 1.18:1 Thrust Ratio
|
| |
|
 |
|
Twin Kaos (K-2)
|
Mystique 2.9 Glider
|
| Pilot: Gordon in Virginia |
Pilot: Jeff in California
|
- Wingspan: 55"
- Weight: 7bs (113oz or 3190g)
- BadAss 2820-910Kv x 2
- Castle Creations Edge Lite 50A ESCs x 2
- 4S 5300mah LiPo Battery
- APC 11x5.5 Prop
- 40A, 597 watts, 55mph Pitch Speed, 88oz Thrust
- Total power for 2 motors = 1194 watts/lb, 176oz
- 171 watts/lb, 1.56:1 Thrust Ratio
|
- Wingspan: 114"
- Weight: 5.1bs (82oz or 2318g)
- BadAss 2826-1030Kv
- BadAss Rebel V2 80A ESC
- Castle Creations 10A BEC
- BadAss 3S 3300mah LiPo Battery
- Gemfan 13x8 Folding Prop
- 57A, 654 watts (measured), 101oz Thrust
- 128 watts/lb, 1.2 Thrust Ratio
|
| |
|
 |
|
G-Force Custom Design
|
Great Planes Trainer 60
|
| Pilot: Robert in Montana |
Pilot: Larry in Illinois
|
- Wingspan: 55"
- Weight: 5.2bs (83oz or 2353g)
- BadAss 3530-700Kv
- Jeti Opto 77A ESC
- Castle Creations 10A BEC
- 5S 4700mah HV LiPo Battery
- Falcon 14x7 Carbon Fiber Prop
- 75A, 1388 watts, 94mph Pitch Speed, 169oz Thrust
- 267 watts/lb, 2:1 Thrust Ratio
|
- Wingspan: 71"
- Weight: 7.5bs (120oz or 3402g)
- BadAss 3520-650Kv
- BadAss Rebel V2 80A ESC
- 6S 5000mah HV LiPo Battery
- APC 11x5.5 Prop
- 49A, 1092 watts, 66mph Pitch Speed, 126oz Thrust
- 146 watts/lb, 1:1 Thrust Ratio
|
| |
|
 |
|
Canard Biplane
|
Sig T-clips 70
|
| Pilot: Bruce in Idaho |
Pilot: Bill in Missouri |
- Wingspan: ?"
- Weight: 8bs (128oz or 3629g)
- BadAss 3530-890Kv
- BadAss Rebel 85A ESC
- 4S 5000mah LiPo Battery
- APC 11x8 Prop
- 78A, 1153 watts, 87mph Pitch Speed, 112oz Thrust
- 144 watts/lb, .88:1 Thrust Ratio
|
- Wingspan: 70"
- Weight: 7.4lbs (118oz or 3357g)
- BadAss 3530-570Kv
- Avian 100A ESC
- 6S 3200mah 30C Spektrum Battery
- APC 15x7 Prop
- 74A, 1635 watts, 65mph Pitch Speed, 213oz Thrust
- 221 watts/lb, 1.8:1 Thrust Ratio
|
| |
|
 |
 |
Astro Hog Bipe
|
Mosquito
|
| Pilot: Bruce in Idaho |
Pilot: Bruce in Idaho |
- Wingspan: 54.5"
- Weight: 6.75bs (108oz or 3062g)
- BadAss 3520-970Kv
- BadAss Rebel 65A ESC
- 4S 5000mah LiPo Battery
- APC 11x5.5 Prop
- 63A, 938 watts, 62mph Pitch Speed, 113oz Thrust
- 139 watts/lb, 1:1 Thrust Ratio
|
- Wingspan: 104"
- Weight: 7.5bs (120oz or 3402g)
- BadAss 3530-890Kv
- BadAss Rebel 85A ESC
- 4S 5000mah LiPo Battery
- APC 13x5.5 Prop
- 80A, 1182 watts, 60mph Pitch Speed, 161oz Thrust
- 158 watts/lb, 1.35:1 Thrust Ratio
|
| |
|
 |
 |
Cap 10
|
Ultra Sport 60
|
| Pilot: Tommy in Texas |
Pilot: Bob in New York |
- Wingspan: 59.1"
- Weight: 8bs (128oz or 3629g)
- BadAss 4520-660Kv
- Castle Creations Talon 90A ESC
- 6S 5000mah LiPo Battery
- APC 13x5.5 Prop
- 79A, 1762 watts, 65mph Pitch Speed, 194oz Thrust
- 220 watts/lb, 1.5:1 Thrust Ratio
- 78 amps 1821 watts, 163 oz thrust measured
|
- Wingspan: 63"
- Weight: 7.4bs (118oz or 3357g)
- BadAss 3530-570Kv
- Cobra 80A ESC
- 6S 5000mah LiPo Battery
- APC 13x8 Prop
- 63A, 1392 watts, 76mph Pitch Speed, 153oz Thrust
- 189 watts/lb, 1.3:1 Thrust Ratio
|
| |
|
 |
 |
Hangar 9 Sundowner 50
|
Phoenix Typhoon Fuse with Aurora Wings
|
| Pilot: Pat in Oregon |
Pilot: Joseph in Texas |
- Wingspan: 63"
- Weight: 7.5bs (120oz or 3402g)
- BadAss 3530-570Kv
- BadAss Rebel V2 80A ESC
- 6S 5000mah LiPo Battery
- Master Airscrew 13x8 3-Blade Prop
- 65A, 1445 watts, 76mph Pitch Speed, 180oz Thrust
- 193 watts/lb, 1.5:1 Thrust Ratio
|
- Wingspan: 59"
- Weight: 6.9bs (104oz or 3710g)
- BadAss 4520-470Kv
- ZTW Gecko 85A ESC
- 6S 5000mah LiPo Battery
- APC 15x8 Prop
- 49A, 1088 watts, 65mph Pitch Speed, 161oz Thrust
- 158 watts/lb, 1.5:1 Thrust Ratio
|
| |
|
 |
 |
Dirty Birdy
|
Flying Saucer
|
| Pilot: Jim in Tennessee |
Pilot: Bruce in Idaho |
- Wingspan: 64"
- Weight: 6.75bs (108oz or 3062g)
- BadAss 3530-570Kv
- HobbyWing FunFly 80A ESC
- 6S 5000mah LiPo Battery
- 13x8 Prop
- 63A, 1392 watts, 76mph Pitch Speed, 153oz Thrust
- 206 watts/lb, 1.4:1 Thrust Ratio
- On alternate 12x12 prop Jim measured 125mph in straight level flight
|
- Wingspan: 34.5"
- Weight: 5lbs (80oz or 2268g)
- BadAss 2820-910Kv
- Tempest 60A ESC
- 4S 5000mah LiPo Battery
- APC 11x8 Prop
- 51A, 751 watts, 76mph Pit Speed, 86oz Thrust
- 150 watts/lb, 1.1:1 Thrust Ratio
|
| |
|
 |
 |
Top Flite Gold Edition P-40
|
Graupner Silentius 86
|
| Pilot: Bruce in Idaho |
Pilot: Vince in Virginia |
- Wingspan: 64"
- Weight: 11bs (176oz or 4990g)
- BadAss 4530-550Kv
- BadAss Renegade 125A ESC
- 6S LiPo Battery
- 15x7 Prop
- 98A, 2174 watts, 72mph Pitch Speed, 262oz Thrust
- 198 watts/lb, 1.5:1 Thrust Ratio
|
- Wingspan: 79"
- Weight: 2.81lbs (45oz or 1275g)
- BadAss 2320-1090Kv
- Cobra 40A ESC
- 3S 30C 2200mah LiPo Battery
- Gemfan folding 11x8 Prop
- 27.5A, 280 watts, 60mph Pitch Speed, 49oz Thrust
- 100 watts/lb, 1.1:1 Thrust Ratio
- This aircraft is a kit build and he replaced an old original brushed motor
|
| |
|
 |
 |
Monowing Blauer Meister
|
Biwing Flugmacher
|
| Pilot: Gordon in Virginia |
Pilot: Gordon in Virginia |
- Wingspan: 58"
- Weight: 2.87lbs (46oz or 1304g)
- BadAss 2814-870Kv
- Avian 45A ESC
- 4S 60C 2200mah LiPo Battery
- Master Airscrew 11x7 Prop
- 38A, 555 watts, 63mph Pitch Speed, 77oz Thrust
- 193 watts/lb, 1.67:1 Thrust Ratio
- This aircraft was built from scratch using plywood and foam board
|
- Wingspan: 47"
- Weight: 2.93lbs (47oz or 1332g)
- BadAss 2814-870Kv
- Avian 45A ESC
- 4S 60C 2200mah LiPo Battery
- Master Airscrew 11x7 Prop
- 38A, 555 watts, 63mph Pitch Speed, 77oz Thrust
- 189 watts/lb, 1.6:1 Thrust Ratio
- This aircraft was built from scratch using plywood and foam board
|
| |
|
 |
 |
Kwik Fli Mk2
|
Triwing Dreidecker
|
| Pilot: Bob in New York |
Pilot: Gordon in Virginia |
- Wingspan: 59"
- Weight: 5.7lbs (91oz or 2585g)
- BadAss 3520-650Kv Motor
- E-Flite 80A ESC
- BadAss 5S 400mah LiPo
- APC 11x8.5E Prop
- 48A, 897 watts, 84mph Pitch Speed, 97oz Thrust (Measured)
- 157 watts/lb, 1:1 Thrust Ratio
- Scratch built from Jensen Plans
|
- Wingspan: 47"
- Weight: 3.38lbs (54oz or 1531g)
- BadAss 2814-870Kv
- Avian 45A ESC
- 4S 60C 2200mah LiPo Battery
- Master Airscrew 11x7 Prop
- 38A, 555 watts, 63mph Pitch Speed, 77oz Thrust
- 164 watts/lb, 1.4:1 Thrust Ratio
- This aircraft was built from scratch using plywood and foam board
|
| |
|
 |
 |
Great Planes UltraSport 1000
|
3D LabPrint P-38
|
| Pilot: Gordon in Virginia |
Pilot: Ken in Florida |
- Wingspan: 74"
- Weight: 11.9lbs (191oz or 5415g)
- BadAss 4530-360Kv Motor
- Castle Creations Edge 100A ESC
- 4S 5300mah LiPo x 2 in Series for 8S 5300mah Total
- APC 16x8 Prop
- 66A, 2010 watts, 237oz Thrust (Measured)
- 169 watts/lb, 1.24:1 Thrust Ratio
|
- Wingspan: 55.5"
- Weight: 5lbs (80oz or 2268g)
- BadAss 2315-1110Kv Motors x 2
- Tempest 40A ESCs x 2
- 4S 3200mah LiPo Battery
- APC 9x6 Forward/Reverse Props
- 30A, 441 watts, 53mph Pitch Speed, 53oz Thrust
- 882 watts, 106oz Thrust Total
- 176 watts/lb, 1.3:1 Thrust Ratio
|
| |
|
 |
 |
Senior Telemaster
|
Old Maxford USA P-51 Profile
|
| Pilot: Bruce in Idaho |
Pilot: Bruce in Idaho |
- Wingspan: 95"
- Weight: 11lbs (176oz or 4990g)
- BadAss 2826-820Kv Motor
- ESC?
- 5S 2200mah LiPo x 2 in Parallel for 5S 4400mah Total
- APC 13x4 Prop
- 55A, 1131 watts, 144oz Thrust (Measured)
- 103 watts/lb, 0.8:1 Thrust Ratio
|
- Wingspan: 52"
- Weight: 2lbs 7oz (39oz or 1106g)
- BadAss 2826-820Kv Motor
- ESC?
- 5S 2200mah LiPo Battery
- APC ? Prop
- ?A, ? watts, ?mph Pitch Speed , ?oz Thrust
- ? watts/lb, ? Thrust Ratio
|
| |
|
 |
 |
Old School Model Works Kaos 60
|
Old School Model Works Wayfarer
|
| Pilot: Bruce in Washington |
Pilot: Bruce in Washington |
- Wingspan: 59"
- Weight: 7lbs (112oz or 3175g)
- BadAss 3530-700Kv Motor
- BadAss Renegade 125A ESC
- 6S 4000mah LiPo Battery
- APC 11x7 Prop
- 74A, 1641 watts, 88mph Pitch Speed , 147oz Thrust
- 234 watts/lb, 1.3:1 Thrust Ratio
|
- Wingspan: 79.5"
- Weight: 1.7lbs (27oz or 765g)
- BadAss 2305-1960Kv Motor
- BadAss Rebel 25A ESC
- 3S 2200mah LiPo Battery
- APC 5x4.6 Prop
- 14A, 159 watts, 76mph Pitch Speed , 19oz Thrust
- 94 watts/lb, .7:1 Thrust Ratio
|
| |
|
 |
 |
Goldberg Anniversary Cub
|
Great Planes Super Sportster EP
|
| Pilot: Bruce in Washington |
Pilot: Stefan in Michigan |
- Wingspan: 76.5"
- Weight: 7.5lbs (120oz or 3402g)
- BadAss 3520-790Kv Motor
- BadAss Rebel 85A ESC
- 4S 4000mah LiPo Battery
- APC 13x6.5 Prop
- 63A, 937 watts, 56mph Pitch Speed , 118oz Thrust
- 125 watts/lb, .98:1 Thrust Ratio
- This model is 35 years old and was converted from glow power
|
- Wingspan: 48"
- Weight: 2lbs 15oz (47oz or 1332g)
- Motor: BadAss 3515-1130Kv
- Red Brick 80A ESC
- Battery: 3S 2200mah
- Propeller: APC 12x8 SF Slow Fly
- 72A, 726 watts (Measured), 90oz Thrust
- 250 watts/lb, 1.9:1 Thrust Ratio
|
| |
|
 |
 |
Aero Composites Jekyll 60
|
Pilot Extra NG
|
| Pilot: Jeff in Michigan |
Pilot: Jim in Ohio |
- Wingspan: 66"
- Weight: 8lbs (128oz or 3629g)
- BadAss 4520-470Kv Motor
- BadAss Renegade 85A ESC
- 6S 4000mah LiPo Battery
- BadAss 17x8 Prop
- 77A, 1703 watts, 60mph Pitch Speed , 233oz Thrust
- 213 watts/lb, 1.82:1 Thrust Ratio
|
- Wingspan: 67"
- Weight: 10.4lbs (166oz or 4717g)
- BadAss 4530-440Kv Motor
- Cobra 100A ESC
- 6S 6200mah LiPo Battery
- BadAss 17x8 Prop
- 85A, 1893 watts, 63mph Pitch Speed , 256oz Thrust
- 182 watts/lb, 1.54:1 Thrust Ratio
|
| |
|
 |
 |
Lockheed Super Constellation
|
Sig Hog Bipe
|
| Pilot: Peter in Trinidad West Indies |
Pilot: Justin in Illinois |
- Wingspan: 88”
- Weight: 13.5lbs (216oz or 6123g)
- BadAss 2315-880Kv motors x 4
- BadAss Rebel 35A ESCs x 4
- 4S 2200mah LiPo Batteries x 2
- Master Airscrew 9x7x3 3-Blade Props x 4
- Separate 6v Battery for radio system power
- Per Motor = 22A, 319 watts, 62mph pitch speed, 46oz thrust
- 4 Motor Total = 88A, 1276 watts, 62mph pitch speed, 184oz thrust
- 95 watts-per-pound, 0.85:1 Thrust-to-weight Ratio
- Scratch-Built People!
|
- Wingspan: 54.5"
- Weight: 9lbs (144oz or 4082g)
- BadAss 4530-440Kv Motor
- BadAss Renegade 125A ESC
- 6S 4000mah LiPo Battery
- BadAss 17x6 Prop
- 77A, 1713 watts, 48mph Pitch Speed , 227oz Thrust
- 190 watts/lb, 1.57:1 Thrust Ratio
|
| |
|
 |
 |
Pilot RC Slick 67"
|

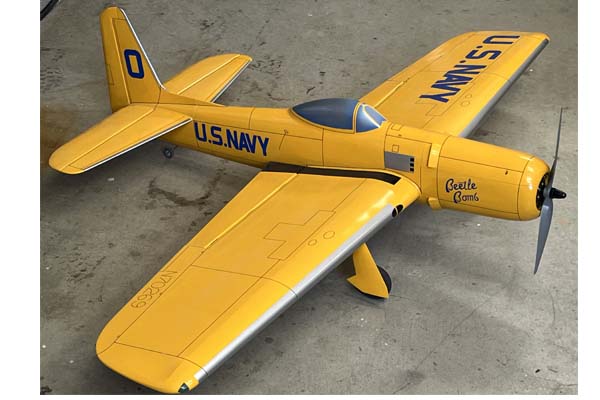

Grumman F8F Bearcat
|
| Pilot: Roland in Canada |
Pilot: Tim in New Hampshire |
- Wingspan: 67”
- Weight: 11.3lbs (181oz or 5120g)
- BadAss 4520-470Kv motor
- Tempest 8S 120A ESC
- 6S 5000mah LiPo Battery
- BadAss 17x8 Wood Prop
- 77A, 1703 watts, 60mph pitch speed, 233oz thrust
- 151 watts-per-pound, 1.29:1 Thrust-to-weight Ratio
|
- Wingspan: 60”
- Weight: 8.5lbs (136oz or 3856g)
- BadAss 4530-270Kv motor
- Cobra 80A ESC
- 6S 5000mah LiPo Battery
- 18.6" VarioProp 4-Blade prop set at 9"
- 50A, 1150 watts, ?mph pitch speed, ?oz thrust
- 135 watts-per-pound, Unknown Thrust-to-weight Ratio but full vertical for sure!
|
| |
|
 |
 |
1/4 Scale Pietenpol Aircamper
|
Piper PA-12 Super Cruiser
|
| Pilot: Bernard in Oklahoma |
Pilot: Rob in Pennsylvania |
- Wingspan: 84.5”
- Weight: 15lbs (240oz or 6804g)
- BadAss 4530-440Kv motor
- BadAss Renegade 155A ESC
- 6S 5000mah LiPo Battery
- BadAss 16x8 Wood Prop
- 74A, 1640 watts, 64mph pitch speed, 210oz thrust
- 109 watts-per-pound, .88:1 Thrust-to-weight Ratio
|
- Wingspan: 45"
- Weight: 1.75lbs (28oz or 794g)
- BadAss 2310-1220Kv motor
- Castle Creations 25A ESC
- BadAss 3S 1300mah LiPo Battery
- APC 9x4.5 Prop
- 17A, 188 watts, 42mph pitch speed, 34oz thrust
- 107 watts-per-pound, 1.2:1 Thrust-to-weight Ratio
- Nice Build thread - CLICK HERE
|
| |
|
 |
 |
Sig Wonder
|
Phoenix Model 20cc FW-190
|
| Pilot: Mike in California |
Pilot: Jarrod in North Carolina |
- Wingspan: 37.5”
- Weight: 2.5lbs (40oz or 1134g)
- BadAss 3515-1130Kv motor
- YEP 100A ESC
- 6S 1500mah Lumenier High Discharge LiPo Battery
- APC 9x6 Prop
- 94.2A, 2100 watts, ?mph pitch speed, ?oz thrust
- 840 watts-per-pound, ? Thrust-to-weight Ratio
- This is seriously over-powered if there were such a thing!
- For a flight video CLICK HERE
|
- Wingspan: 68”
- Weight: 12lbs (192oz or 5443g)
- BadAss 4530-440Kv motor
- BadAss Renegade 125A ESC
- 6S 5000mah LiPo Battery
- BadAss 16x8 Wood Prop
- 74A, 1640 watts, 64mph pitch speed, 210oz thrust
- 137 watts-per-pound, 1.1:1 Thrust-to-weight Ratio
|
| |
|
 |
 |
Phoenix Model Ryan STA
|
Ryan STA
|
| Pilot: James in Ohio |
Pilot: Tony in North Carolina |
- Wingspan: 70.8”
- Weight: 9.57lbs (153oz or 4341g)
- BadAss 4520-470Kv motor
- Cobra 100A ESC
- 6S 6200mah LiPo Battery
- BadAss 16x8 Wood Prop
- 67.3A, 1493 watts, 62mph pitch speed, 195oz thrust
- 156 watts-per-pound, 1.27:1 Thrust-to-weight Ratio
|
|
| |
|
 |
 |
Phoenix Model Tucano
|
Balsa USA Northstar
|
| Pilot: Adam in Colorado |
Pilot: David in Minnesota |
- Wingspan: 62.1”
- Weight: 7.3lbs (117oz or 3311g)
- BadAss 3530-570Kv motor
- BadAss Rebel 85A ESC
- 6S 4000-5000mah LiPo Battery
- APC 13x6.5E & 13x8 Propellers
- 13x6.5 Prop = 59A, 1318 watts, 63mph pitch speed, 146oz thrust
- 181 watts-per-pound, 1.25:1 Thrust-to-weight Ratio
- 13x8 Prop = 63A, 1392 watts, 76mph pitch speed, 153oz thrust
- 191 watts-per-pound, 1.3:1 Thrust-to-weight Ratio
|
- Wingspan: 44”
- Weight: 6.2lbs (99oz or 2807g)
- BadAss 2826-1360Kv motor
- Castle Creations Phoenix Ice 75A ESC
- 3S 5000mah LiPo Battery
- Master Airscrew 10x8 Propeller
- 69A, 770 watts, 81mph pitch speed, 84oz thrust
- 124 watts per pound
- 0.84:1 Thrust-to-weight ratio
|
| |
|
 |
 |
Sig 4-Star 20
|
Balsa USA Moonraker
|
| Pilot: Bruce in Connecticut |
Pilot: Joe in Pennsylvania |
- Wingspan: 48”
- Weight: 2.5lbs (40oz or 1134g)
- BadAss 2320-1310Kv motor
- BadAss Rebel 45A ESC
- 3S 2200mah Spektrum G1 Smart LiPO
- APC 9x6E Propeller
- 34A, 377 watts, 66mph pitch speed, 49oz thrust
- 150 watts per pound
- 1.23:1 Thrust-to-weight ratio
|
- Wingspan: 54”
- Weight: 4.5lbs (72oz or 2041g)
- BadAss 3515-1130Kv motor
- BadAss Rebel 85A ESC
- 4S 3000mah LiPo battery
- APC 11x5.5E Propeller
- 80A, 1184 watts, 67mph pitch speed, 129oz thrust
- 263 watts per pound
- 1.8:1 Thrust-to-weight ratio
|
| |
|
 |
 |
Extreme Flight Vanquish
|
Pica Dualist 40
|
| Pilot: Ron in California |
Pilot: Tom in California |
- Wingspan: 48”
- Weight: 3lbs (48oz or 1361g)
- BadAss 2814-870Kv motor
- BadAss Rebel 45A ESC
- 4S 2200mah 40C LiPo
- APC 11x5.5E Propeller
- 32A, 478 watts, 52mph pitch speed, 75oz thrust
- 120 watts per pound
- 1.5:1 Thrust-to-weight ratio
|
- Wingspan: 67”
- Weight: 9.75lbs (156oz or 4423g)
- BadAss 2826-820Kv motor x 2
- ZTW Gecko 80A Wing ESC x 2
- 30C 4S 3300mah lipo x 2
- APC 11x8.5E Propeller x 2
- 50A, 743 watts, 98mph pitch speed, 86oz Thrust x 2
- 100A, 1486 watts, 172oz thrust total
- 152 watts per pound
- 1.1:1 Thrust-to-weight ratio
- Flight time is 6 minutes mixed flying down to 3.78v/cell
- Measured 98mph speed flat and level
|
| |
|
 |
 |
Richmodel KeeCat
|
Super Chipmunk
|
| Pilot: Joe in Michigan |
Pilot: Ron in Missouri |
- Wingspan: 55.5”
- Weight: 8lbs (128oz or 3629g)
- BadAss 3530-700Kv motor
- ?A ESC
- Two 3S LiPo 4000mah lipos in series for 6S
- APC 11x8E Propeller
- 82A, 1812 watts, 98mph pitch speed, 139oz thrust
- 227 watts per pound
- 1.1:1 Thrust-to-weight ratio
- Has retracts and easily takes off from grass.
- Rudders split for speed brakes.
|
- Wingspan: 64”
- Weight: 6.4lbs (102oz or 2903g)
- BadAss 3520-560Kv motor
- Castle Creations 75A ESC
- 6S 4000mah Lipo
- APC 14x6E Propeller
- 49A, 1090 watts, 57mph pitch speed, 155oz thrust
- 50A, 1120 watts measured
- 170 watts per pound
- 1.5:1 Thrust-to-weight ratio
|
| |
|
 |
 |
Starlight Control Line F2B
|
Sig Magnum
|
| Pilot: Konstantin in Toronto Canada |
Pilot: Pete in Minnesota |
- Wingspan: 61.3”
- Weight: 3.7lbs (59.3oz or 1680g)
- BadAss 2820-780Kv motor
- Jeti Spin 66A ESC
- Igor Burger Timer
- Thunder Power 5S 2800mah LiPo
- Igor Burger 12x5 propeller
- ?A, ? watts, ?mph pitch speed, ?oz thrust
- ? watts per pound
- ? Thrust-to-weight ratio
|
- Wingspan: 60”
- Weight: 4.4lbs (70oz or 1984g)
- BadAss 3520-650Kv motor
- Castle Creations Ice Lite 50A ESC
- KR Governor Timer
- Thunder Power 6S 2800mah LiPo
- APC 11x5.5E propeller
- 25A, 536 watts set at 11,010 RPM
- 122 watts per pound
- Constructed in 1991
|
| |
|
 |
 |
Predator Control Line Stunt
|
CrashTestHobby Vertigo 40
|
| Pilot: Jim in Arizona |
Pilot: Bob in California |
- Wingspan: 62”
- Weight: 4.25lbs (68oz or 1928g)
- BadAss 2826-690Kv motor
- Castle Creations Phoenix Edge Lite 50A ESC
- Thunder Power 6S 2800mah LiPo
- Cox Resinger Carbon Foiber 3-blade 11x5.5 propeller
- Tru-Turn Aluminum Spinner
- ?A, ? watts
- ? watts per pound
- Finish is Randolph Dope with 2-part automotive urethane top clear coat
|
- Wingspan: 40”
- Weight: ?lbs (?oz or ?g)
- BadAss 2814-1950Kv motor
- Castle Creations Edge Lite 75A ESC
- 4S ?mah LiPo
- APC 7x7E propeller
- 100A, 1500 watts
- ? watts per pound
- CLICK HERE for the video
|
| |
|
 |
 |
60" Stick
|
Defiant Wings D63
|
| Pilot: Stefan in Michigan |
Pilot: Clayton in Ohio |
- Wingspan: 60”
- Weight: 6lbs (96oz or 2722g)
- BadAss 3515-1130Kv motor
- Red Brick 100A ESC
- Turnigy 3S 5000mah LiPo
- APC 12x8E propeller
- 75A, 800 watts, 80oz thrust
- 133 watts per pound, .83:1 thrust ratio
|
- Wingspan: 63”
- Weight: 6.5lbs (105oz or 2970g)
- BadAss 2826-1360Kv motor
- Cobra 80A Wing ESC
- 4S 5200mah LiPo x 2
- APC 9x4.5E propeller
- 69A, 1020 watts, 110oz thrust
- 157 watts per pound, 1:1 thrust ratio
- Vector Flight Controller, DragonLink 900mhz, 1.3ghz Vtx
- Flight time is 45+ minutes
|
| |
|
 |
 |
Ritewing Nano Drak Boomer
|
Ritewing Drak
|
| Pilot: Mike Stevens in Nevada |
Pilot: Mike Stevens in Nevada |
- Wingspan: 32” - Extended wings cut down from 40"
- Weight: 2.8lbs (45oz or 1280g)
- BadAss 2320-1310Kv motor
- TBS Racewing 45A ESC
- BadAss 45C 6S 2600mah LiPo
- APC 6x6 propeller
- 39A, 868 watts, 140mph pitch speed, 53oz thrust
- 310 watts per pound
- 1.18:1 Thrust-to-weight ratio
- Flat and level speed is 125mph
- VIDEO: Nano Drak Boomer Out in Desert
|
- Wingspan: 58” - Wings cut from 62"
- Weight: 10.1lbs (162oz or 4590g)
- BadAss 3530-700Kv motor
- BadAss Renegade 85A ESC
- BadAss 45C 6S 13,000mah LiPo
- APC 12x8 propeller
- 92A, 2041 watts, 92mph pitch speed, 160oz thrust
- 202 watts per pound
- 1:1 Thrust-to-weight ratio
- 10 Mile Challenge Record Holder at 12:37 minutes.
- VIDEO: Big Drak Cruising at 110mph
|
| |
|
 |
 |
Ritewing Mini Drak
|
Ritewing Drak
|
| Pilot: Jason in British Columbia Canada |
Pilot: Josh in Wiltshire UK |
- Wingspan: 40”
- Weight: 3.53lbs (56oz or 1600g)
- BadAss 2820-1080Kv motor
- Hobbywing 60A Platinum ESC (85A Burst)
- GensAce 6S 3300mah LiPo
- APC 8x6 propeller - Not on prop chart and likely over max current
- 82A, 1832 watts, 106mph pitch speed, 106oz thrust
- 519 watts per pound
- 1.9:1 Thrust-to-weight ratio
- Jason Says "Seems to be a great motor combo so far!"
- VIDEO: 4th Flight Raw OSD Video
|
- Wingspan: 62”
- Weight: 9.5lbs (152oz or 4300g)
- BadAss 3530-700Kv motor
- Vgood 120A ESC
- Tattu 25C 6S 10,000mah LiPo
- APC 12x6 and 12x8 propellers
- 12x6 Prop - 81A, 1790 watts, 72mph pitch speed, 11lbs thrust
- 12x8 Prop - 92A, 2041 watts, 92mph pitch speed, 10lbs thrust
- 202 watts per pound
- 1:1 Thrust-to-weight ratio (12x8 prop), 1.16:1 (12x6 prop)
|
| |
|
 |
 |
Extreme Flight Speed Freak Outlaw
|
Old School Models Comet
|
| Pilot: Joe in Washington |
Pilot: Ron in Missouri |
- Wingspan: 36”
- Weight: 2lbs (33.5oz or 950g)
- BadAss 2826-1360Kv motor
- ?A ESC
- HRB 6S 1800mah LiPo
- APC 7x7 Sport propeller
- 91A, 2015 watts, 165mph pitch speed, 24,850 RPMs, 118oz thrust
- 964 watts per pound
- 3.5:1 Thrust-to-weight ratio
- Joe Says "This sucker really moves"
|
- Wingspan: 39.5”
- Weight: 3lbs (48oz or 1361g)
- BadAss 2814-1950Kv motor
- BadAss Rebel 85A ESC
- 45C 3S 3000mah LiPo
- APC 8x4 propeller
- 55A, 591 watts (measured), 66mph pitch speed, 71oz thrust
- 197 watts per pound
- 1.48:1 Thrust-to-weight ratio
- This is a KIT model
- Video: Product Video
|
| |
|
 |
 |
Brodak SV-11
|
Speed Freak Pantera
|
| Pilot: David in Massachusetts |
Pilot: Tim in South Carolina |
- Wingspan: 60.5”
- Weight: 4lbs (65oz or 1850g)
- BadAss 3520-650Kv motor
- Jeti Spin 66A ESC with Fioratti Timer
- Thunder Power 5S 2800mah LiPo
- Two 11x6 Tomasz Pol propellers mounted 90 degrees apart
- ?A, ? watts, ?mph pitch speed, ?oz thrust
- ? watts per pound
- ? Thrust-to-weight ratio
- Ultracote finish with custom fiberglass parts by David.
|
- Wingspan: 52”
- Weight: 4.5lbs (from specifications) (72oz or 2041g)
- BadAss 3520-7900Kv motor
- FW 100A ESC, 10A Castle Creations BEC
- 6S 4000mah Spektrum LiPo
- APC 9x9 propeller
- 66A, 1545 watts, 121mph pitch speed, 94oz thrust
- 343 watts per pound
- 1.3:1 Thrust-to-weight ratio
|
